17AM Thermal protector
17AM Series Motor Protector Supplier & manufacturers
Product Categories:
HKW/17AM Thermal protector
Keywords:
- Product description
-
Introduction
HKW/17AM series protector is a kind of over-temperature and over-current double protector, its size is small, the contact capacity is large, the tripping speed is fast.
Features
The most stable thermal protector widely used in the market, Can be customized automatic reset and power reset, Double temperature and current keeping function, Switch case is overcurrent, can be directly used as a conductor, lead length model can be customized.
Electrical Specifications
AC250V / 10A DC24V / 10A
Technical Parameters
Contact type: normally open/normally closed

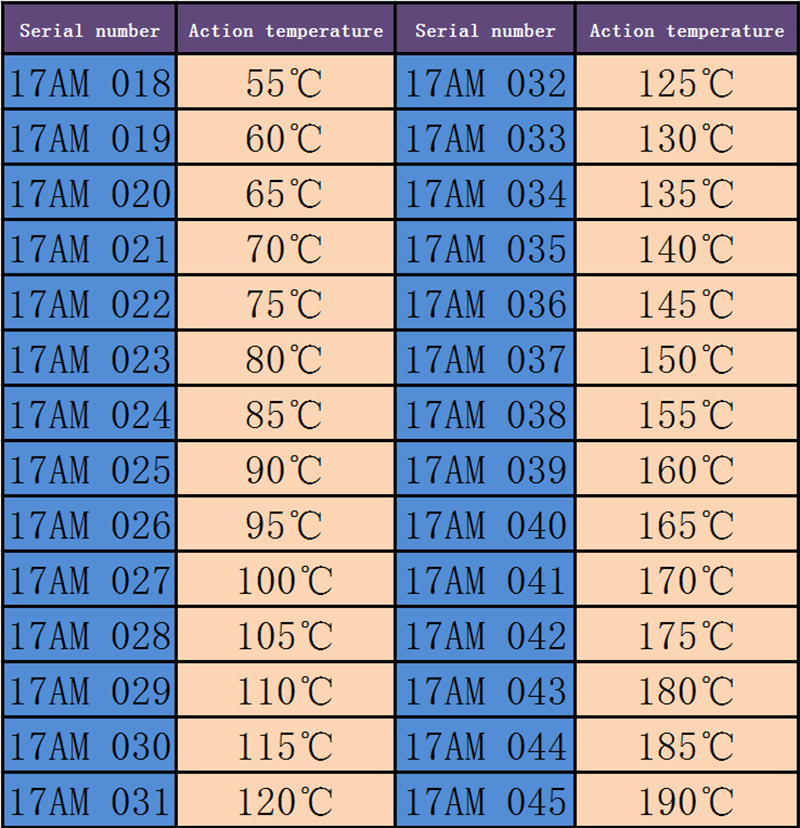

Range of action: 55℃-190℃
Temperature tolerance: ±5℃ Contact resistance: ≤50mΩ Reset temperature: the operating temperature drops by 15℃-45℃
Electrical strength: AC2500V/min without breakdown flashover
Action life: ≥10000 times
Applications
• All kinds of motors
• Transformers and pumps
• Lighting lamps and lanterns
• High power lamp holder
• All kinds of electric heating appliance
• New energy battery
