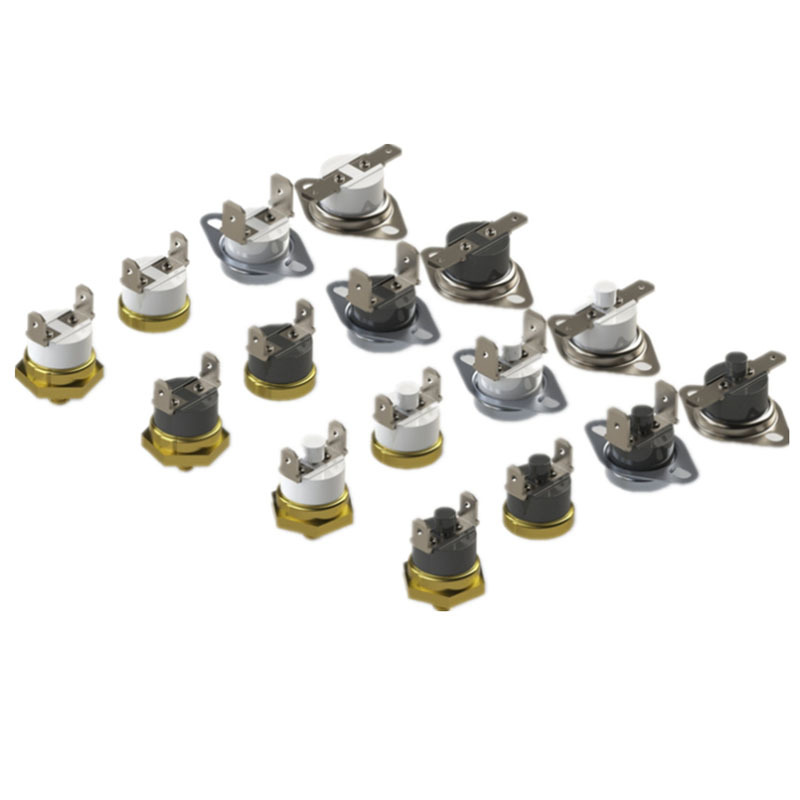

HKW301 KSD301 Thermostat
KSD301 Thermostat is temperature-fixed bimetal disc Snap-Action temperature controll switch thermostat. Widely used in heating tube, heating pad, paper shredder, electric kettle, soybean milk machine etc.
Product Categories:
HKW301/KSD301 Thermostat
Keywords:
- Product description
-

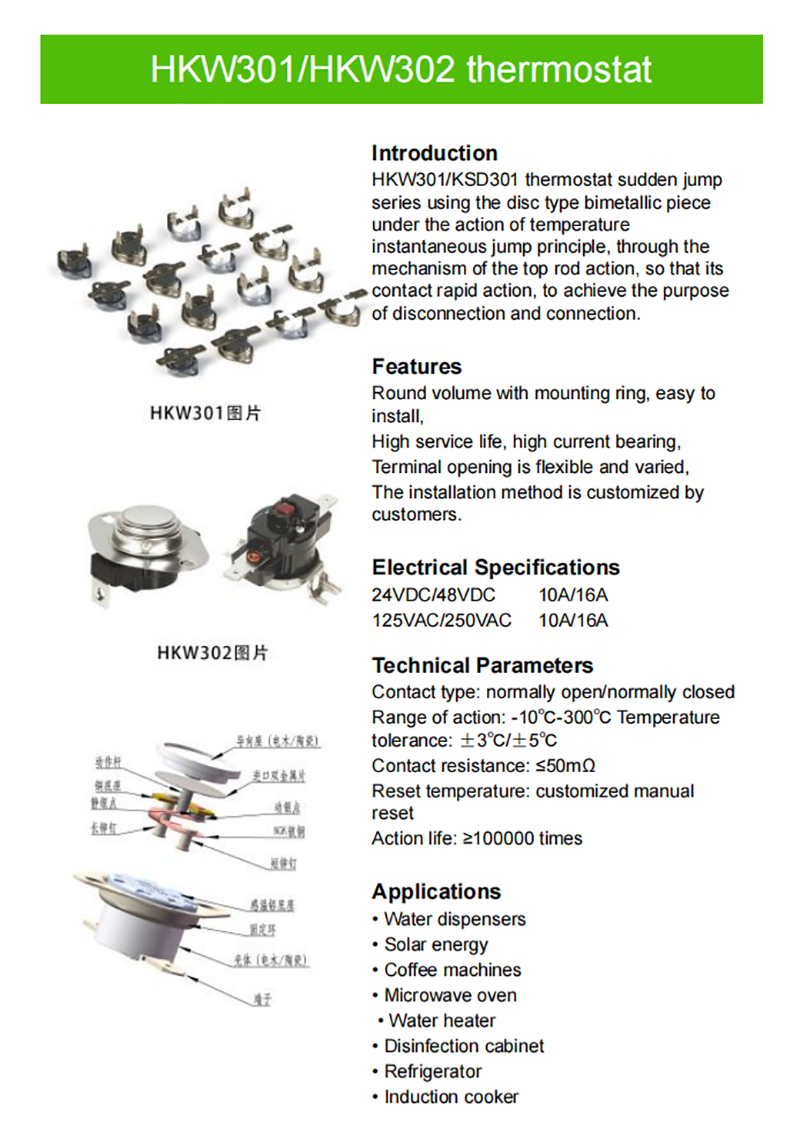

Introduction

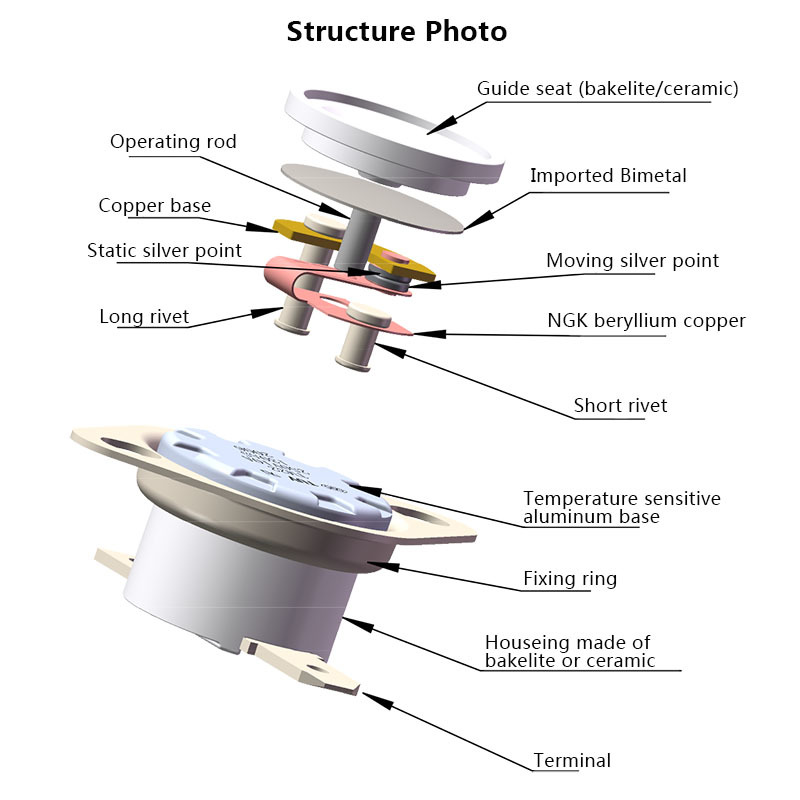

HKW301/KSD301 thermostat sudden jump series using the disc type bimetallic piece under the action of temperature instantaneous jump principle, through the mechanism of the top rod action, so that its contact rapid action, to achieve the purpose of disconnection and connection.
Features
Round volume with mounting ring, easy to install, High service life, high current bearing, Terminal opening is flexible and varied, The installation method is customized by customers.
Electrical Specifications
24VDC/48VDC 10A/16A
125VAC/250VAC 10A/16A
Technical Parameters
Contact type: normally open/normally closed
Range of action: -10℃-300℃
Temperature tolerance: ±3℃/±5℃
Contact resistance: ≤50mΩ
Reset temperature: customized manual reset
Action life: ≥100000 times
