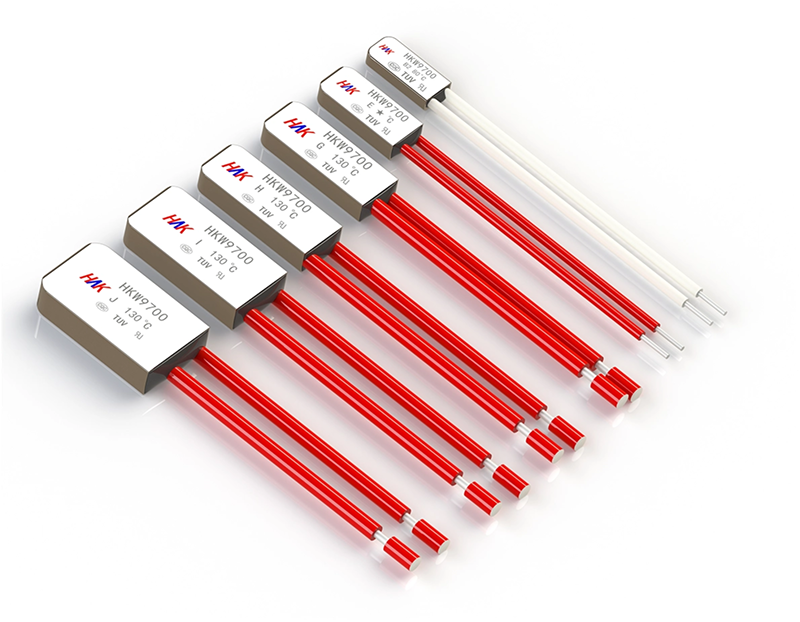

HKW9700 thermal protector- metal casing
HKW9700 sealed type metal case series thermal protectors are ultra-small in size, sensitive in temperature, accurate in protection, and especially suitable for safety protection of various circuit boards.
Product Categories:
HKW9700 Thermal protector
Keywords:
- Product description
-
Introduction：
HKW9700 sealed type metal case series thermal protectors are ultra-small in size, sensitive in temperature, accurate in protection, and especially suitable for safety protection of various circuit boards.
Features：
Ultra-small size, more flexible installation, convenient, sensitive temperature sensing, fast action, plug type installation, convenient and fast, the product in line with environmental protection RoHS standard, normally closed, normally open options.
Technical Parameters
Contact type: NC/NO
Action temp: 45℃-250℃
Temp tolerance: ±5℃
Contact resistance: ≤50mΩ
Reset temp: Action temperature decreases by 10℃-45℃
Electrical strength: AC1500V/min without breakdown flashover
Action life: ≥10000 times
