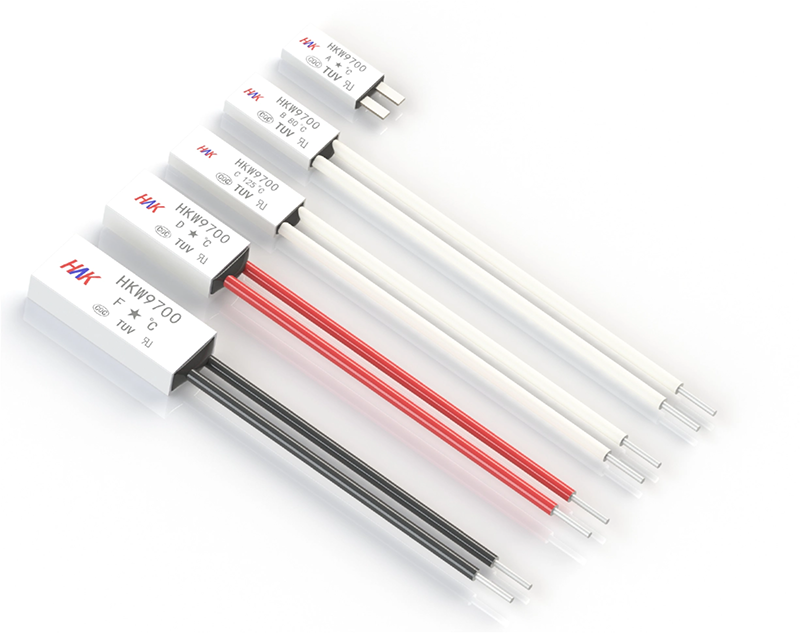

HKW9700 thermal protector - plastic casing

Mailbox:

sales6@hkw9700.com

Enquire Now

Product Categories:

Thermal Protectors

HKW9700 Thermal protector

Keywords:

Huakaiwei

Product description

Introduction：
HKW9700 sealed type plastic case series thermal protectors are ultra-small in size, sensitive in temperature, accurate in protection, and especially suitable for safety protection of various circuit boards.

Features ：
Ultra-small size, more flexible installation, convenient, sensitive temperature sensing, fast action, plug type installation, convenient and fast, the product in line with environmental protection RoHS standard, normally closed, normally open options.

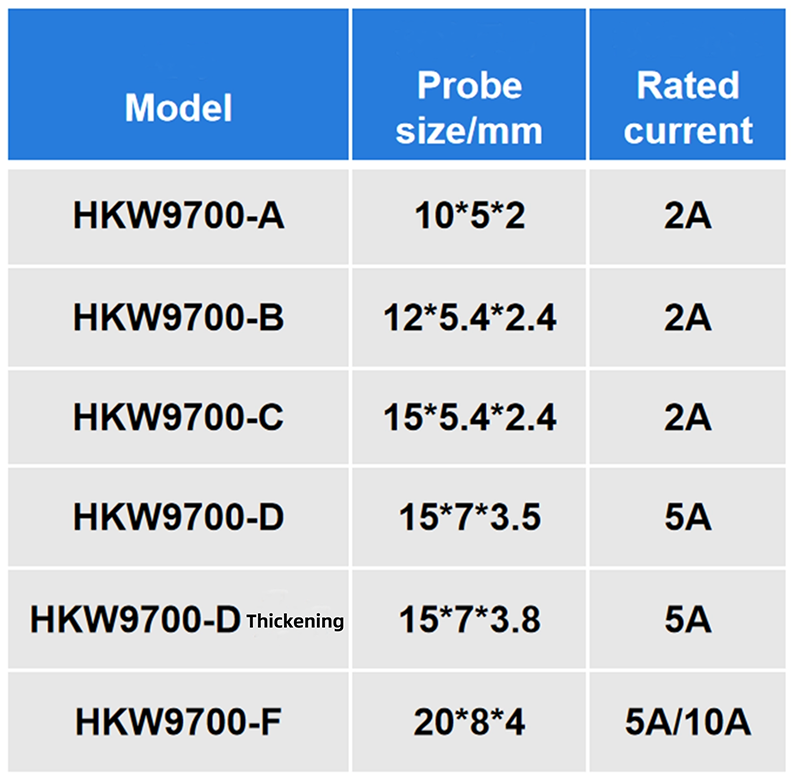

Technical Parameters
Contact type: NC/NO
Action temp: 45℃-150℃
Temp tolerance: ±5℃
Contact resistance: ≤50mΩ
Reset temp: Action temperature decreases by 10℃-45℃
Electrical strength: AC1500V/min without breakdown flashover
Action life: ≥10000 times

None
