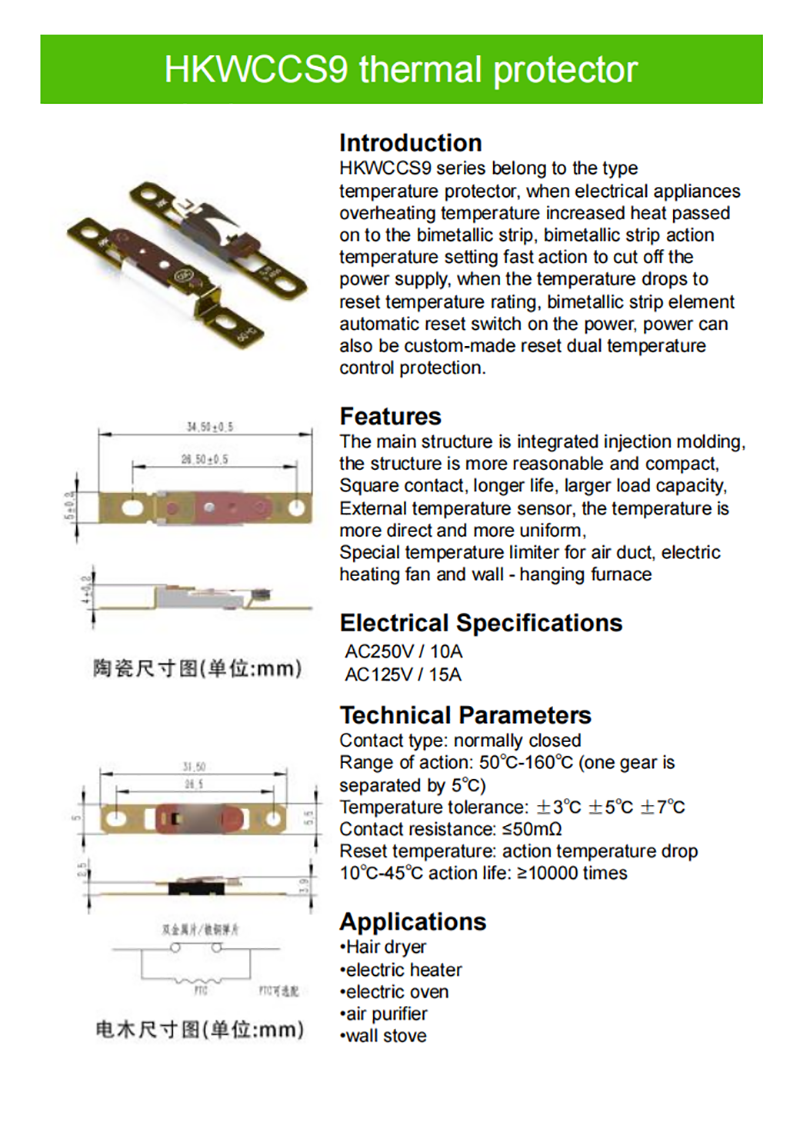

HKWCCS9 Open Backpack Type
Hair dryer thermal protector
Product Categories:
HKWCCS9 Thermal protector
Keywords:
- Product description
-
Introduction
HKWCCS9 series belong to the type temperature protector, when electrical appliances overheating temperature increased heat passed on to the bimetallic strip, bimetallic strip action temperature setting fast action to cut off the power supply, when the temperature drops to reset temperature rating, bimetallic strip element automatic reset switch on the power, power can also be custom-made reset dual temperature control protection.
Features
The main structure is integrated injection molding, the structure is more reasonable and compact, Square contact, longer life, larger load capacity, External temperature sensor, the temperature is more direct and more uniform, Special temperature limiter for air duct, electric heating fan and wall - hanging furnace
Electrical Specifications
AC250V / 10A AC125V / 15A
Technical Parameters
Contact type: normally closed
Range of action: 50℃-160℃ (one gear is separated by 5℃)
Temperature tolerance: ±3℃ ±5℃ ±7℃
Contact resistance: ≤50mΩ
Reset temperature: action temperature drop 10℃-45℃
Action life: ≥10000 times
Applications
•Hair dryer
•electric heater
•electric oven
•air purifier
•wall stove
